To control Electro Static Discharge (ESd) both equipment and person present need to be grounded (earthed). ESd Wrist Strap is one of the means of body grounding.
Available in 1.5Mtrs, 3.0 Mtrs and 5.0 Mtrs Length.
ELECTRO STATIC DISCHARGE WRIST STRAP
To control Electro Static Discharge (ESD) both equipment and person present need to be grounded (earthed). Electro Static Discharge Wrist Strap is one of the means of Body Grounding.
CONSTRICTION OF WRIST STRAP

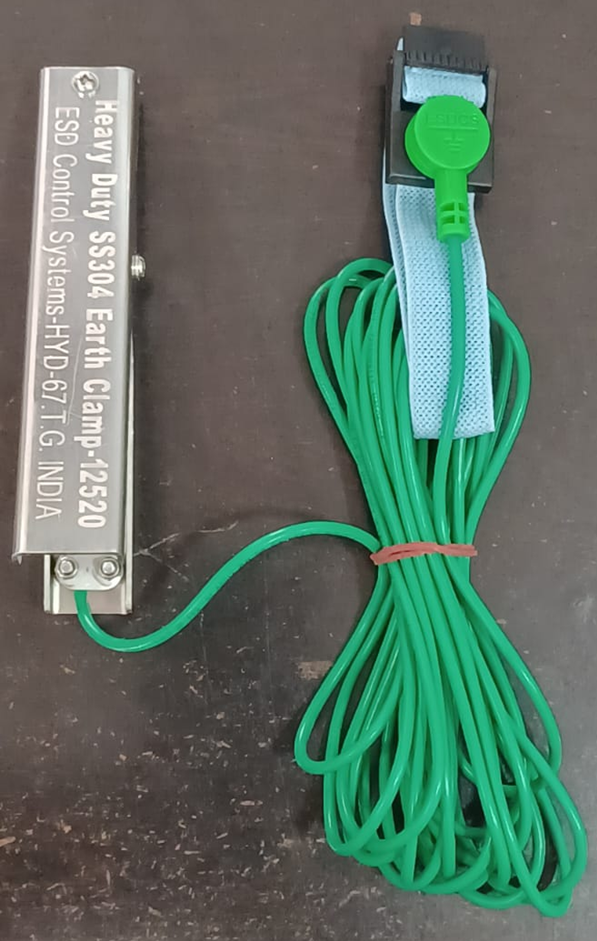

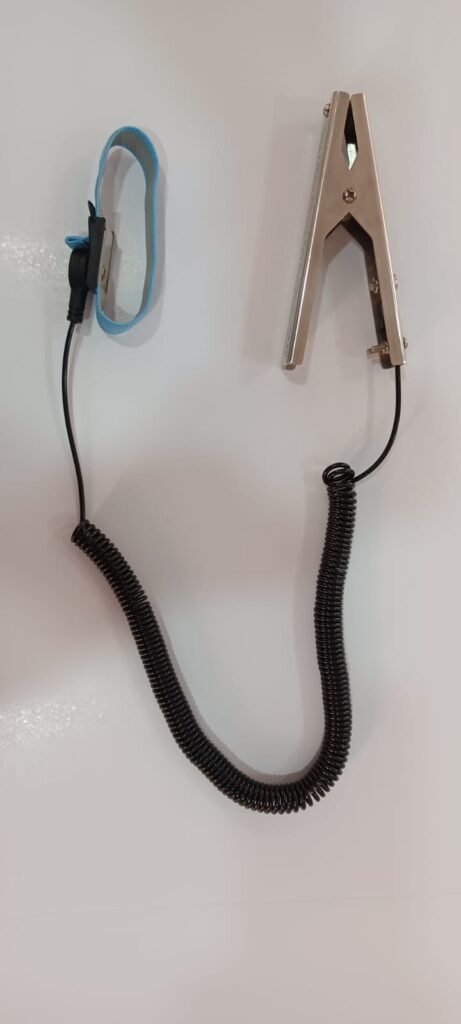

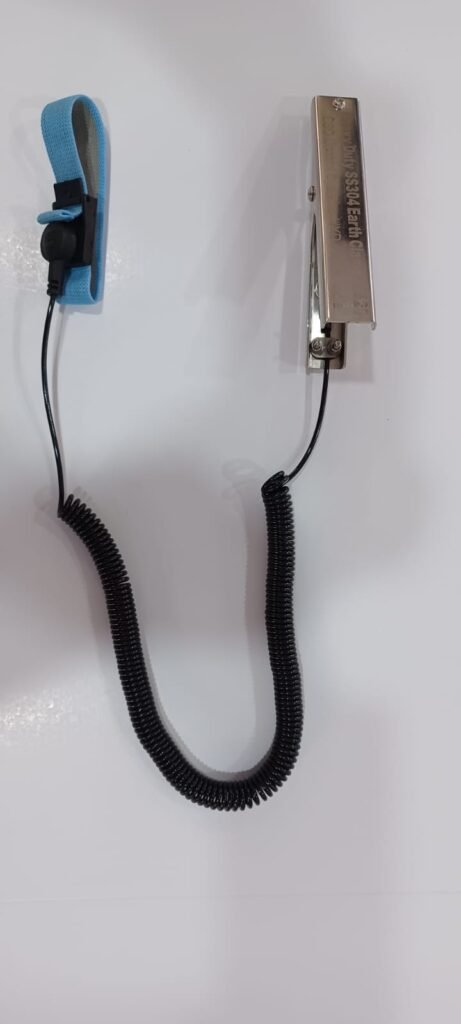

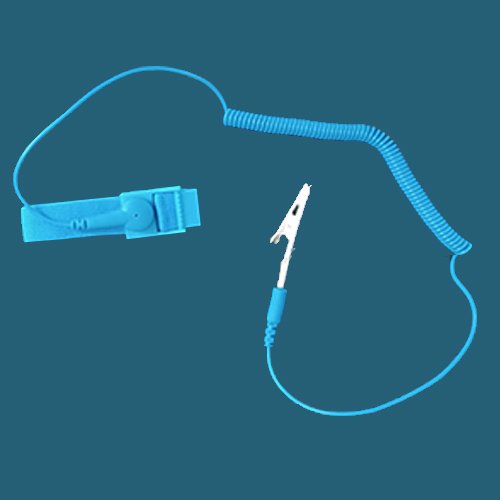

A metal plate with an adjustable elastic Strap is connected with a coiled wire one end of which is connected to Wrist Strap and other end is fitted with a pin and Heavy-Duty Earth Clamp / Crocodile Clamp.
HOW TO USE WRIST STRAP AND ITS FUNCTION

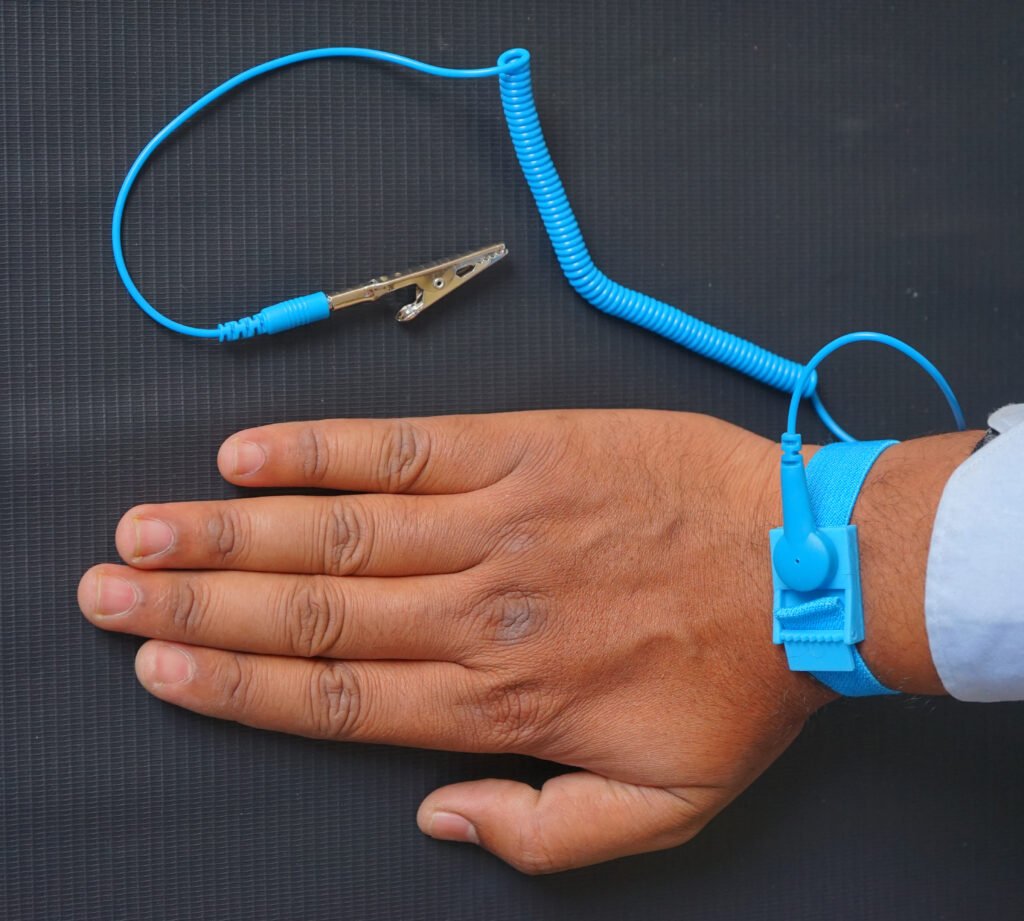

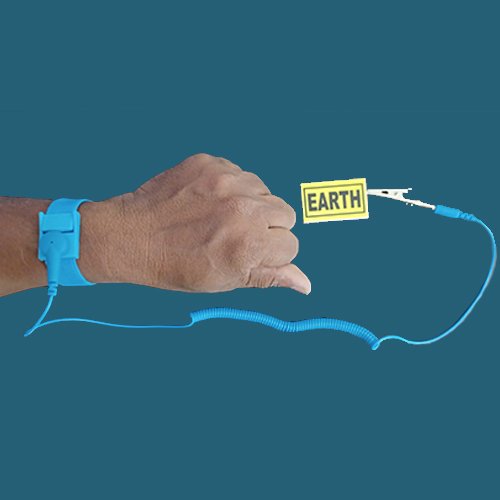

The operator is to wear the Elastic Strap to one of the hands with a steel plate touching the body. The other end (Heavy Duty Earth Clamp / Crocodile Clamp) is to be connected to a known Earth strip. Static Charges generated during operator movements are grounded through Wrist Strap and Earth strip.
TESTING
Use a Multimeter or any other instrument capable of measuring 20.0 M. Ohms. To check the Wrist Strap, keep the selector at 20.0 M. Ohms and touch one end of the probe to metal plate and other end to Heavy Duty Earth Clamp / Crocodile Clamp. The permissible values are 0.75 M. Ohms to 10.0 M. Ohms. The minimum resistance of 0.75 M. Ohms is incorporated to give safety from electrical shocks.
This data is provided for general information and material comparison. The potential user should perform tests to determine the product’s performance and suitability in the intended application. Final determination of the fitness of the product for any particular application is the responsibility of the buyer.
