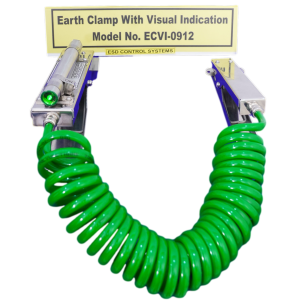

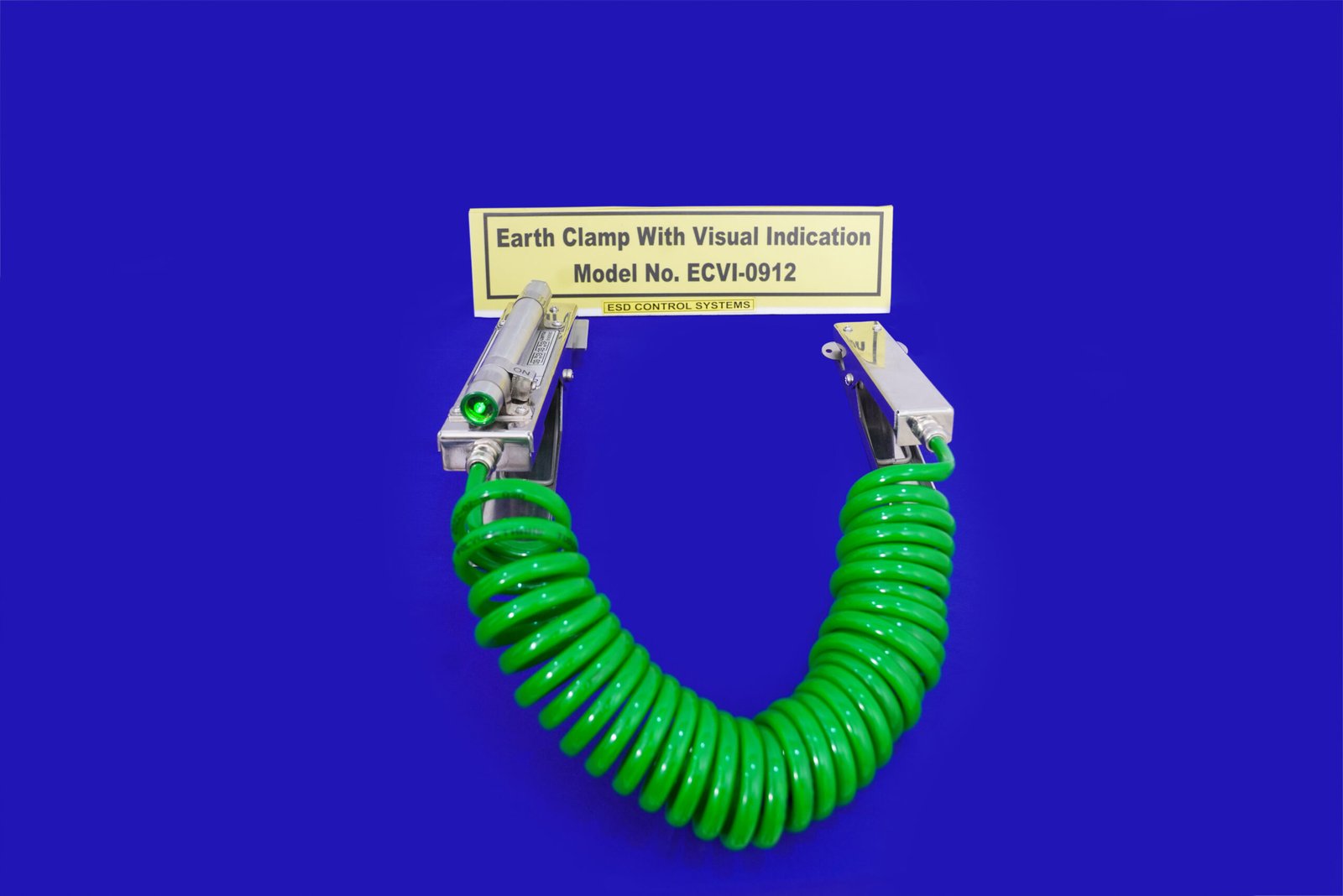

Model No.: ECVI – 0912
To neutralize Static Charges generated during operation or movement of equipment the body of the above is to be connected to Earth.

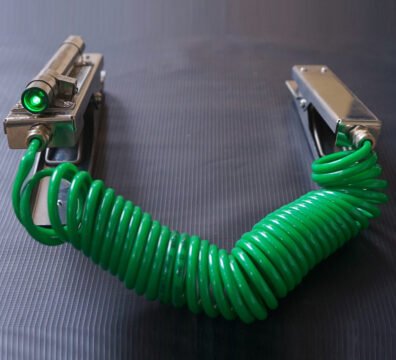

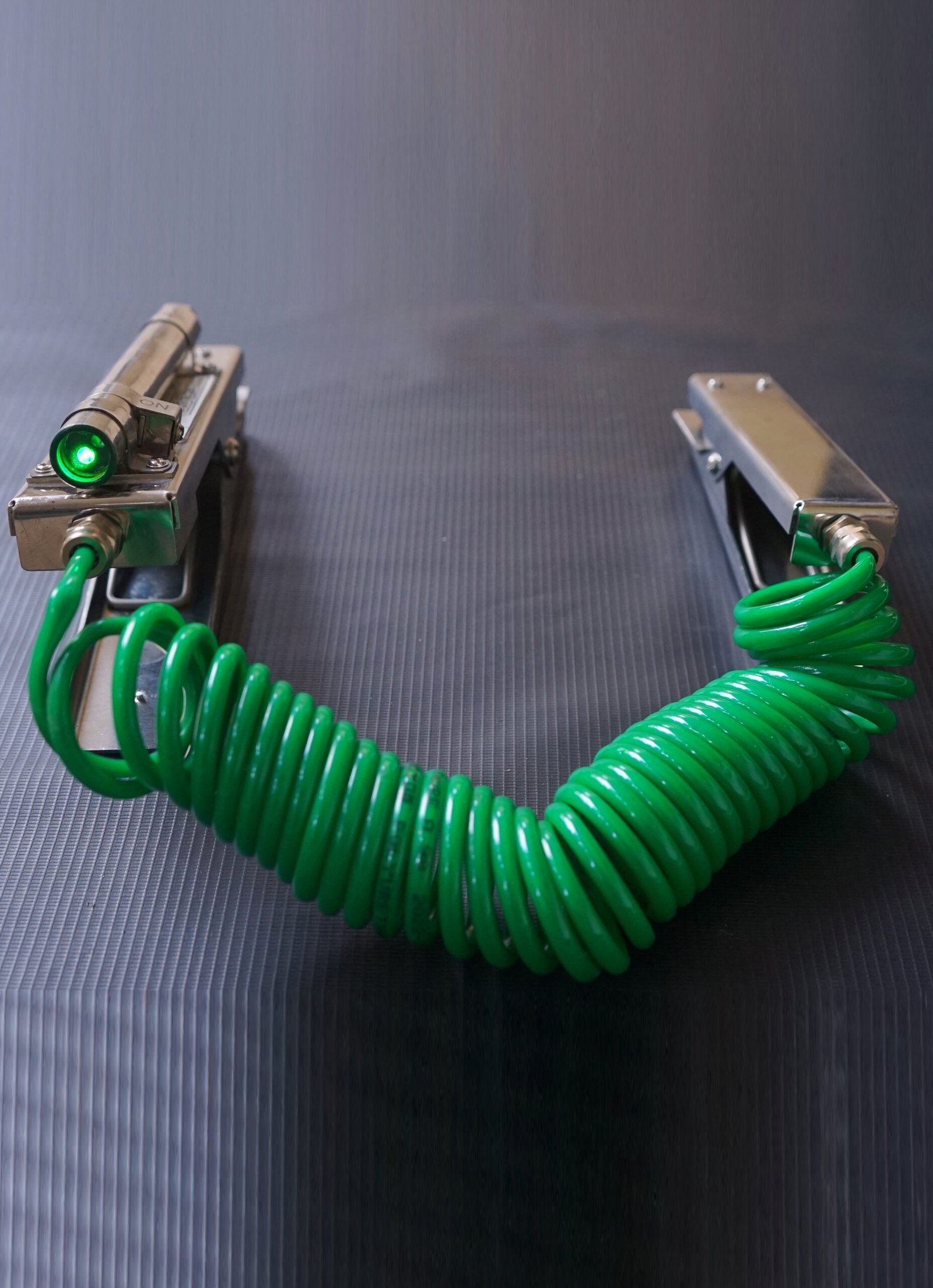

The Earth Clamp with Visual Indication is a devise which gives an electrical bond between equipment and Earth.
The ECVI-0912 is having 2 Nos. of Clamps with Tungsten Carbide Pins and one clamp is to be connected to the equipment and the other to Earth connection. On switching on the devise by rotating 1800, if the equipment is bonded to Earth (i.e.) if all the 4 pins are in an electrical loop, the devise shows GREEN Light and if any disconnection at any of the clamps is shows RED Light.
(As per IS/IEC 60079-0: 2017, IS/IEC 60079-11: 2011 & IS:7689).
It is a Ex Safety certified instrument bearing certification No.:
KLPL/Ex/18/101,
Dated: 21/11/2018.
CLAMP:
a. Length: 200 mm.
b. Width: 50 mm.
c. Jaw opening: 20 mm.
d. Contact Points: 2 Nos of Tungsten Carbide Tips.
EARTH CLAMP:
a. Ground Side:
Length: 150 mm.
Width: 40 mm.
Opening: 20 mm.
Contact Points: 2 Nos of Tungsten Carbide Tips.
ELECTRICAL:
a. Power source: 2 Nos Type ‘AA’ Battery Cells.
b. Battery (Low): Indicated by low intensity in LEDS.
c. Battery Replacement: To be carried out in safe area only by removing the end screw cap.
d. Electronic circuit: Magnetically operated reed switch Concealed in S.S tube. I.C. to provide very low energy levels in contacts.
e. Safety: The entire unit is Intrinsically safe and flame proof.
f. Contact sensing Voltage/Current 1.2 Volts / 0.14 mA.
g. Cable: 5.0 mt 2 core 14 X 36 # A.T.C.
h. Switching: Rotate rotary lever 1800 clockwise for ON & Reverse for OFF
i. Indication: Red LED indicates that the circuit is live and Jaw and Terminal contacts either both or any one is open. Blinking Green LED indicates that the Contacts are ok.
This data is provided for general information and material comparison.
The potential user should perform tests to determine the product’s performance
and suitability in the intended application. Final determination of the fitness
of the product for any particular application is the responsibility of the
buyer.
